 표준품 |
|
|

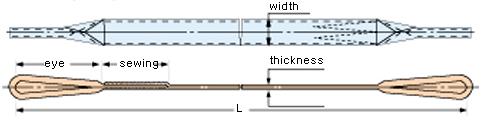

| EYE & EYE
TYPE(2 PLY) |
 |

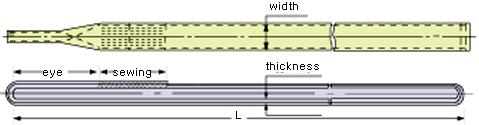

| ENDLESSTYPE(2 PLY) |
 |
|
|
|
|
|
|
절단 하중과 안전하중 |
|
|
 EYE & EYE TYPE |
|
|
| Width |
Straight |
Choker |
Basket |
Breaking Load |
| Single Ply |
Two ply |
 |
 |
 |
 |
| 25mm |
800kg |
650kg |
1,600kg |
3,200kg |
5,000kg up |
| 50 |
1,600 |
1,300 |
3,200 |
6,400 |
10,000" |
| 75 |
2,400 |
1,900 |
4,800 |
9,600 |
15,000" |
| 100 |
3,200 |
2,550 |
6,400 |
12,800 |
20,000" |
| 150 |
4,800 |
3,850 |
9,600 |
19,200 |
30,000" |
| 200 |
6,400 |
5,100 |
12,800 |
25,600 |
40,000" |
| 250 |
8,000 |
6,400 |
16,000 |
32,000 |
50,000" |
| 300 |
9,600 |
7,700 |
19,200 |
38,400 |
60,000" |
|
|
|
|
|
|
ENDLESS TYPE |
|
|
| Width |
Straight |
Choker |
Basket |
Breaking Load |
| Single Ply |
Two ply |
 |
 |
 |
 |
| 25mm |
1,600kg |
1,300kg |
3,200kg |
6,400kg |
10,000kg up |
| 50 |
3,200 |
2,550 |
6,400 |
12,800 |
20,000" |
| 75 |
4,800 |
3,850 |
9,600 |
19,200 |
30,000" |
| 100 |
6,400 |
5,100 |
12,800 |
25,600 |
40,000" |
| 150 |
9,600 |
7,700 |
19,200 |
38,400 |
60,000" |
| 200 |
12,800 |
10,200 |
25,600 |
51,200 |
80,000" |
| 250 |
16,000 |
12,800 |
32,000 |
64,000 |
100,000" |
| 300 |
19,200 |
15,400 |
38,400 |
76,800 |
120,000" |
|
|
|
 |
|
|
각도에 따른 안전하중 |
|
|
EYE & EYE TYPE |
|
|
| Width |
0。 |
30。 |
45。 |
60。 |
90。 |
120。 |
| 100% |
95% |
90% |
85% |
70% |
50% |
 |
 |
 |
 |
 |
 |
| 25mm |
1,600kg |
1,550kg |
1,470kg |
1,390kg |
1,130kg |
800kg |
| 50 |
3,200 |
3,090 |
2,950 |
2,770 |
2,260 |
1,600 |
| 75 |
4,800 |
4,640 |
4,420 |
4,150 |
3,390 |
2,400 |
| 100 |
6,400 |
6,180 |
5,900 |
5,540 |
4,530 |
3,200 |
| 150 |
9,600 |
9,270 |
8,850 |
8,310 |
6,790 |
4,800 |
| 200 |
12,800 |
12,360 |
11,800 |
11,080 |
9,050 |
6,400 |
| 250 |
16,000 |
15,450 |
14,750 |
13,860 |
11,310 |
8,000 |
| 300 |
19,200 |
18,540 |
17,700 |
16,620 |
13,580 |
9,600 |
|
|
|
|
|
|
 |
|
|
|
|
